My favorite flyer to date. I have all the confidence in the world when flying this thing…. Intact I feel like too much confidence.
This is a Nano QX FPV board with a walker plug soldered on instead of the standard MX connection if comes with. It allows for more flow from the batter and a larger selection of aftermarket batteries. Because of the more power flow you can also run 8mm motors instead of the 6mm it runs with. Also shrink wrapping the whole thing adds another gram or two but makes it water resistant?
BEWARE THIS ONLY WORKS WITH THE NANO QX FPV BOARD (WHITE LINE)
It’s strapped to a 80mm Picnic Quads efficiency frame with you generic 8mm motors.

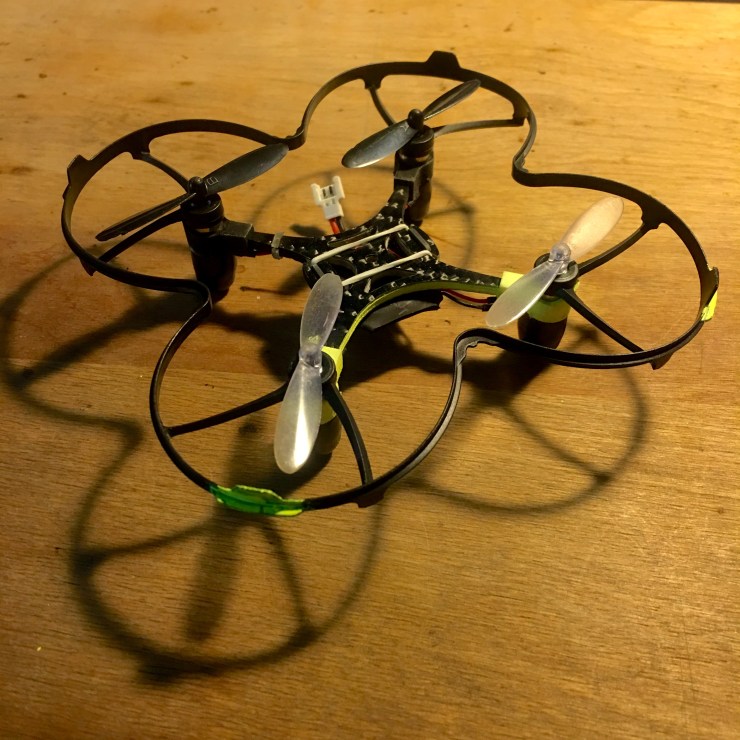

Currently I have the Nano QX with prop guards on it, I have been practicing Acro mode with it and even though it adds the weight I feel like it helps protect the motors when it impacts (which is all the time). I also opted to go with generic motors for that very reason I didn’t want to be shredding through $23 set of motors all the time.
Parts List:
- Blade Nano QX FPV Board
- Picnic Quads 80mm Efficiency Frame & Mounts
- 8mm Motors
- Hubsan Prop Guard
- Hubsan Props
- Walkera/Losi Connector
- Any Battery 240mAh and bigger.
